Laser and camera system LIZZARD® Premium

Improved visibility, precise aiming

Good view of the load, laser and forks in the field of vision
Safe pick-up of load
Improved ergonomics for the driver

999.999 Ft

Free shipping

Net price per piece.

Would you like a consultation? Contact us!

Service-Hotline: +49 2736 9004984

Service email: shop@cleverforks.com

Link to contact form

LinkedIn

Camera image and laser: The premium solution for efficient and safe loading

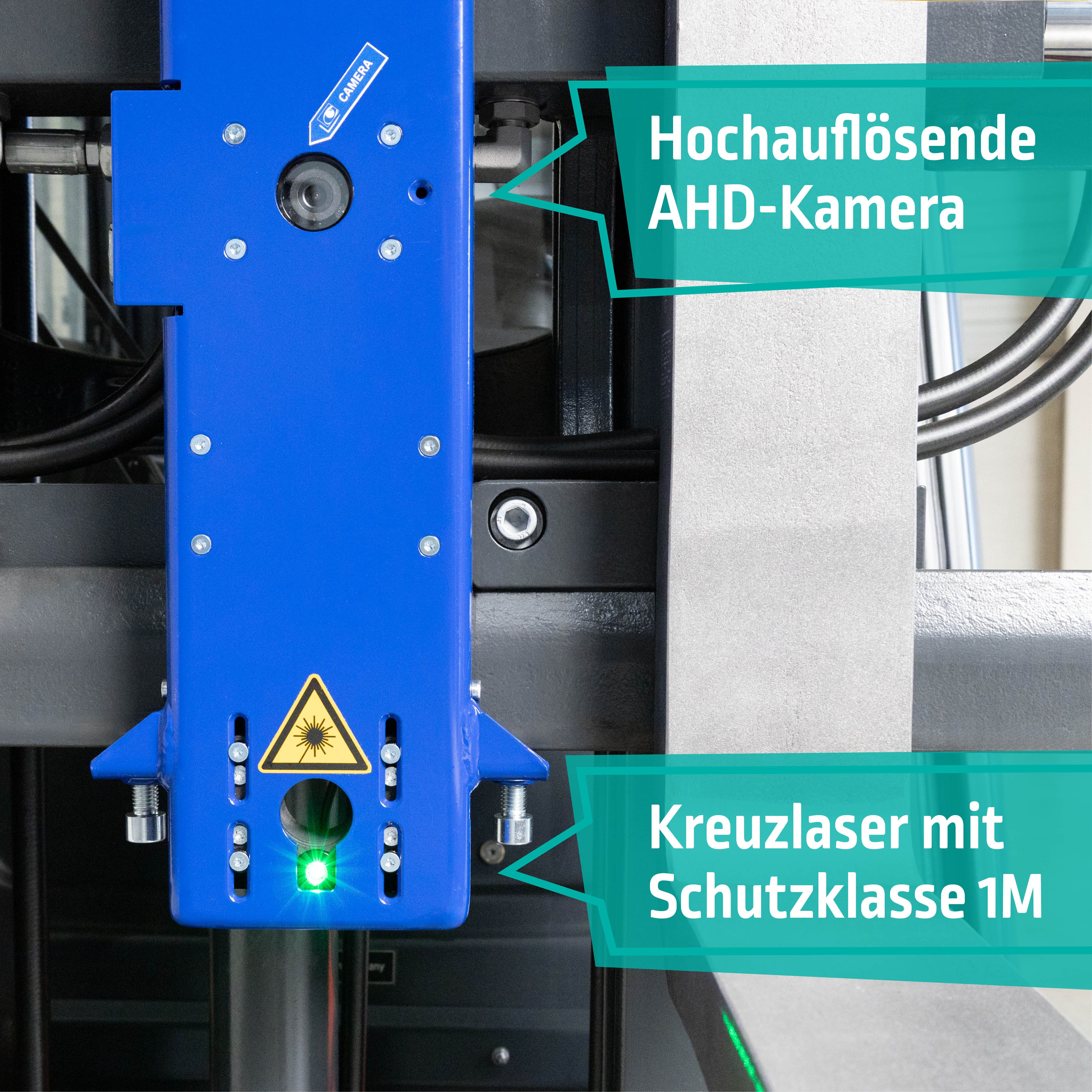

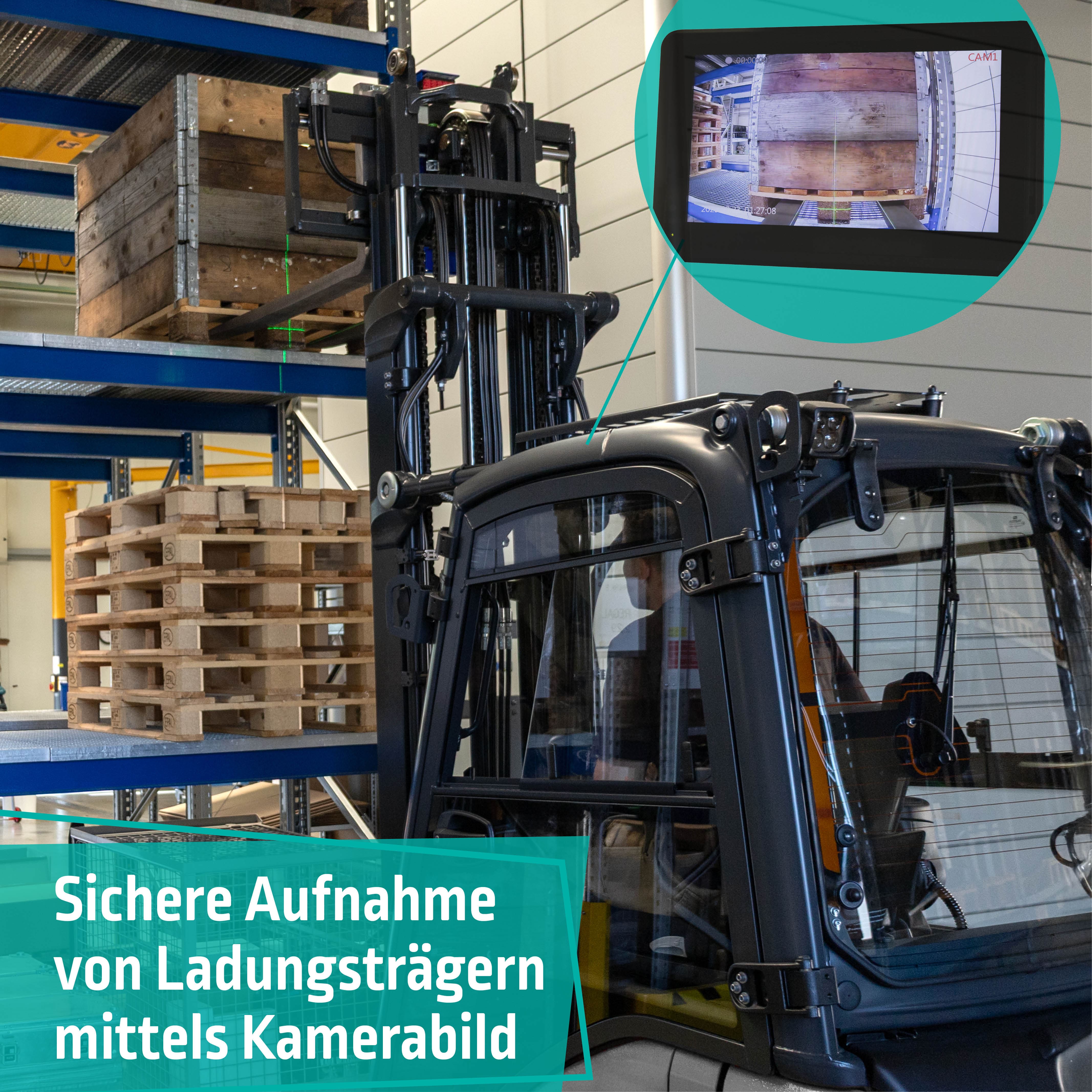

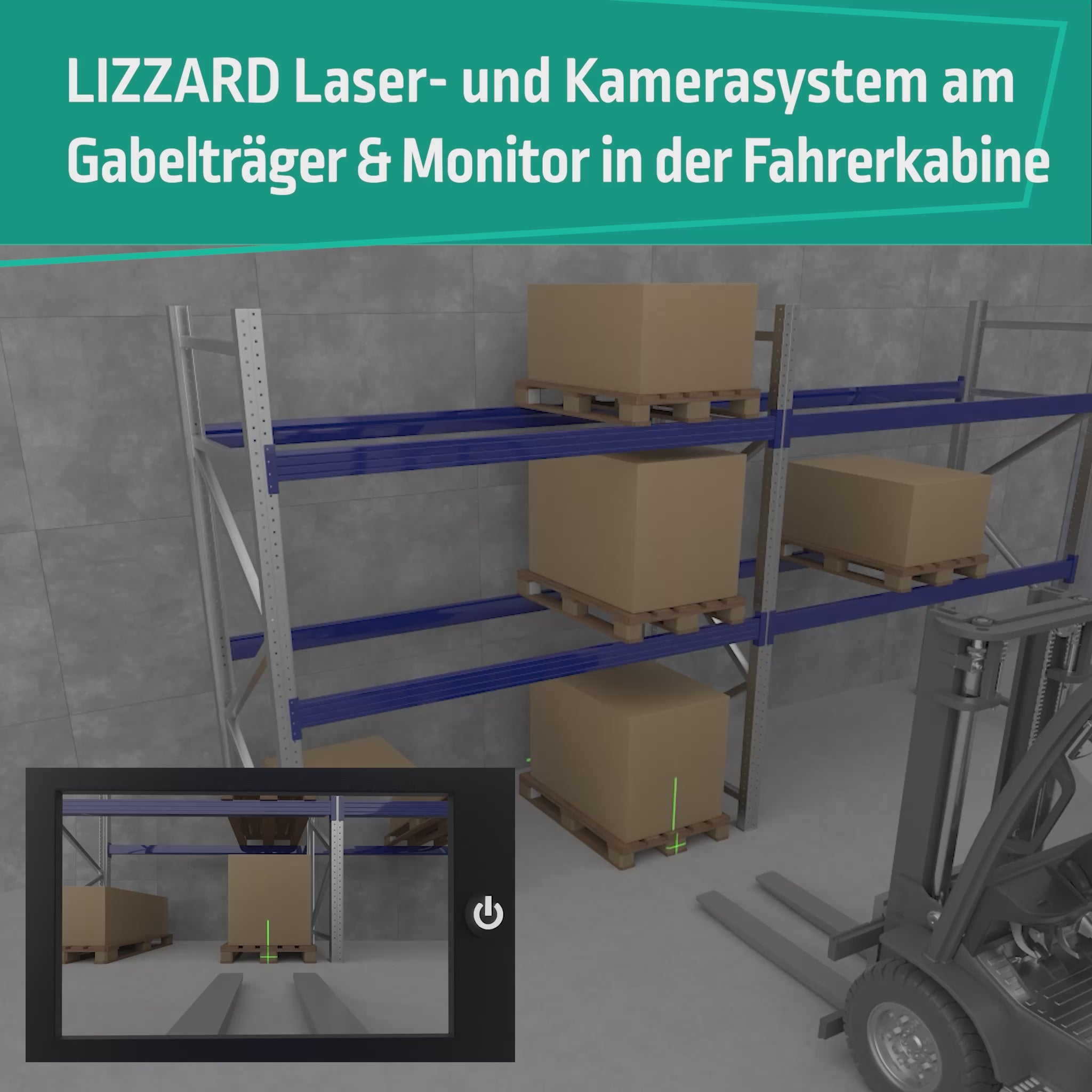

The retrofittable LIZZARD® Premium laser and camera system is attached to the fork carriage of your forklift truck and uses a camera and cross laser to help you aim safely at load carriers. The fork carriage camera transmits the camera image via WiFi to a monitor in the driver's cab. The cross laser projects a vertical and a horizontal line onto the load to ensure that goods are picked up safely. The forklift driver has both fork arms and the cross laser in the field of vision via the monitor. Picking up loads, especially at heights that are difficult to see, becomes much easier, saves time, and reduces damage many times over. At the same time, the ergonomics for the forklift driver are improved.

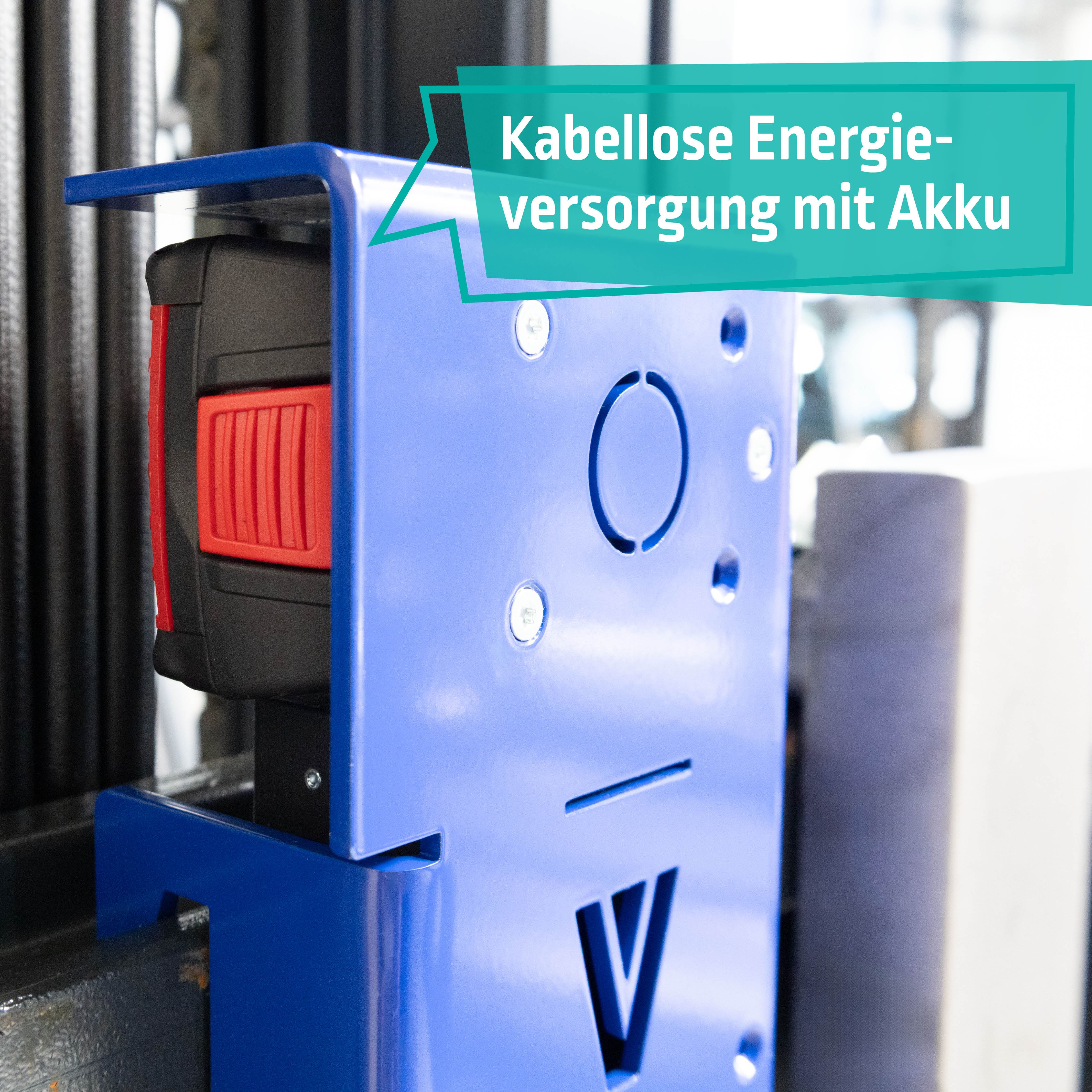

Power is supplied by a battery with a runtime of approx. 10 hours (at room temperature). When the vehicle is stationary, the battery automatically switches to sleep mode after 120 seconds, but is automatically reactivated when the vehicle moves.

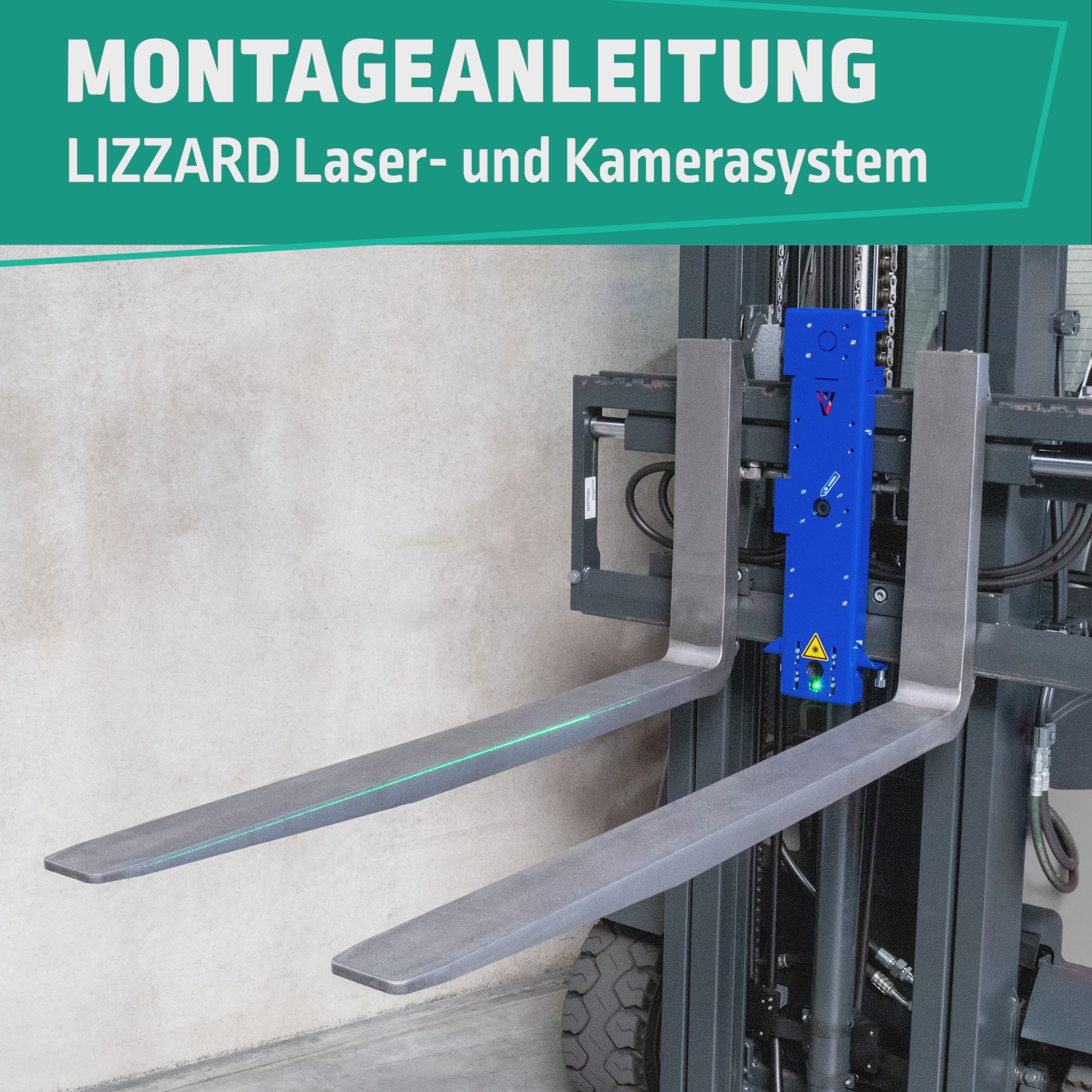

Installation: The laser and camera system can be quickly mounted on the vehicle thanks to its simple attachment to the fork carrier. After hooking it into the fork carriage, the battery is inserted into the designated holder and the laser is adjusted individually. The monitor is attached in the driver's cab.

Technical data

Technical specifications LIZZARD® Premium

Dimensions (LxWxT): 595 x 123 x 40 mm
Suspension: ISO 2A
Camera: AHD camera

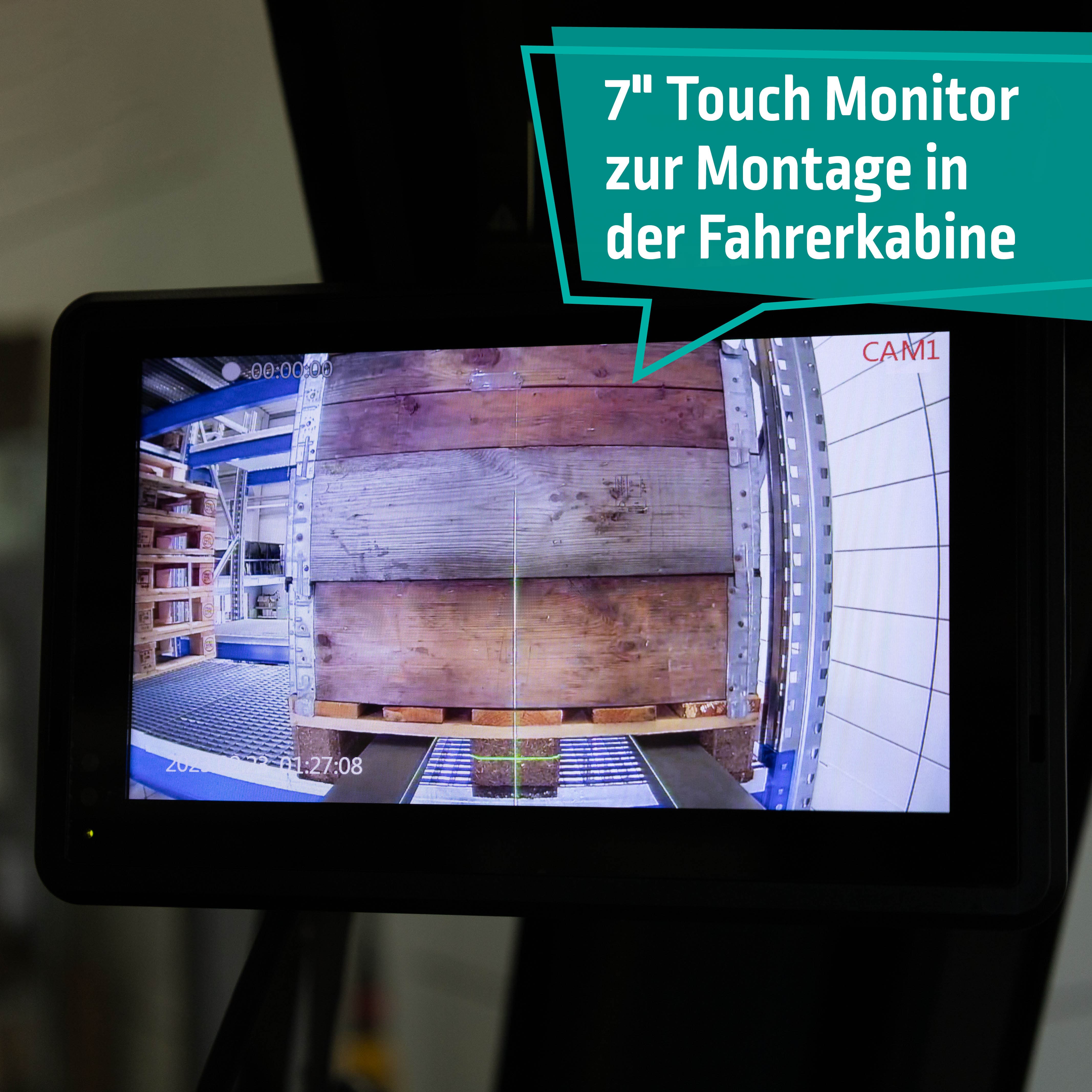

Monitor: 7" Touch Monitor incl. mounting bracket, operating voltage 12 - 24V
Laser: Cross laser green
Laser protection class: 1M, no risk to the eyes
Power supply: 18V lithium-ion battery
Battery life: 10 hours at room temperature
Energy saving mode: Adjustable shutdown
Data transfer: WiFi

Scope of supply

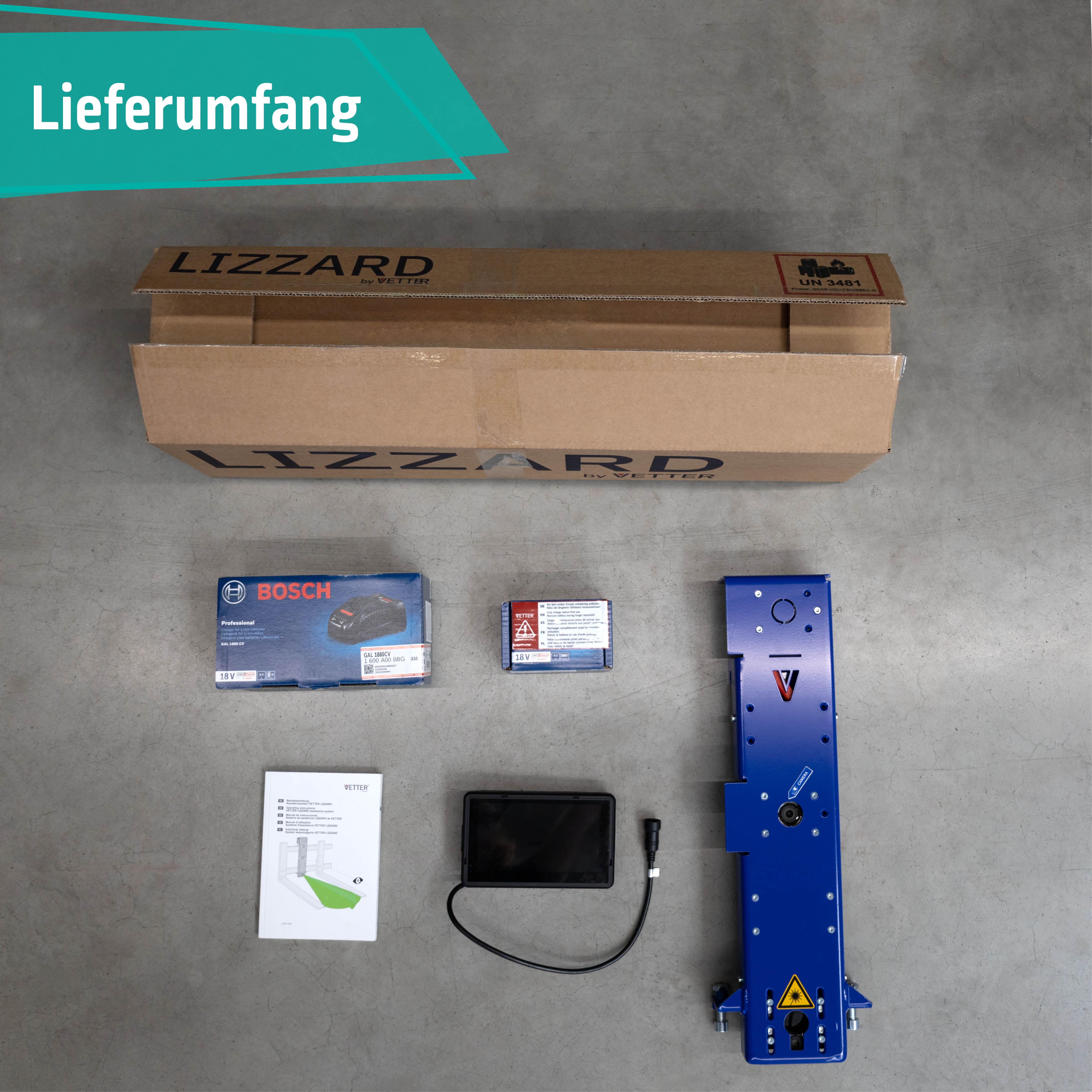

Scope of delivery:

LIZZARD® Premium laser and camera system
1x battery, charger for battery
7" monitor
Assembly instructions

FAQ

FAQ LIZZARD® Premium

On which machines can the LIZZARD® Premium be mounted?

The LIZZARD® fits all industrial trucks that have a standard ISO 2A suspension. For detailed information on ISO dimensions, please refer to the attached file (ISO dimensions).
To prevent damage to the LIZZARD®, we do not recommend using it on fork positioners.
When using a load guard, please ensure that there is sufficient space between it and the fork carrier. The required dimensions can be found in the attached file.

In which industries and for which transport goods is LIZZARD® Premium mainly used?

In principle, the combination of laser and camera systems is suitable for all industries. The camera and the target laser visible on the camera monitor are particularly frequently used to assist with load pick-up in warehouse logistics. LIZZARD® Premium is the preferred solution here for areas that are difficult to see and high-value goods.

What parameters can I use to determine the return on investment (ROI) of LIZZARD® Premium?

Cost optimization through fewer accidents and damaged goods
Minimization of damage to goods and no damage of warehouse infrastructure
Shortening of retrieval times while increasing safety
Improved ergonomics for forklift drivers

Download more FAQs

Instructions for assembly, safety and use

Please note:

The LIZZARD® Premium laser and camera system is an assistance system and does not relieve the user of their duty of care.
